In the figures below, the lines represent numerical calculation based on the San Diego mechanism 2003/08/30, while the points represent the experimental measurements of Humer et al., 2003.

• The strain rate at extinction plotted as a function of the equivalence ratio of the premixed reactant stream. The results are shown for the relative fraction of oxygen equal to 0.185

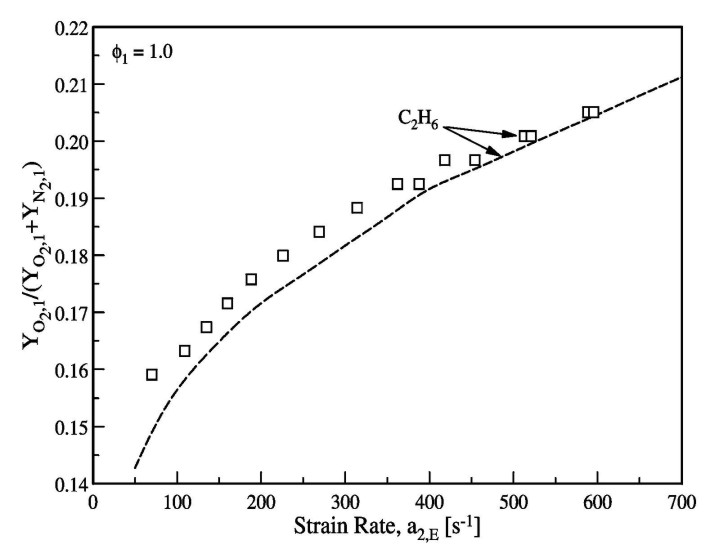

• The relative fraction of oxygen in the premixed reactant stream plotted as a function of the strain rate at extinction. The equivalence ratio of the premixed reactant mixture is equal to unity.




• The temperature of the inert gas stream at autoignition as a function of the strain rate. The mole fraction of fuel and the equivalence ratio are 0.054 and unity, respectively.




• The temperature of the inert gas stream at autoignition as a function of the relative fraction of oxygen. The equivalence ratio of the premixed reactant mixtute is equal to unity while the strain rate is equal to 300 1/s




• Temperature and major species profiles in ethane flames




• Concentration profiles of ethane and various radicals, as well as intermediate species at different equivalence ratios
